DORMER A1305.0 DRILL 5.00 MM 5969315
Metal drill bits A130
References
dormer:A1305.0
rubix:023452
ean:7320760025024

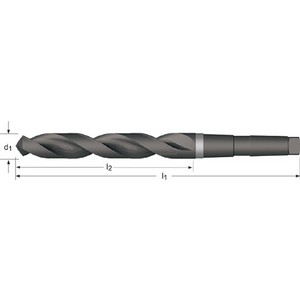

Technical specifications
| Drilling diameter | 5 mm |
|---|---|
| Total length | 133 mm |
| Length of cut | 52 mm |
Product details : DORMER A1305.0 DRILL 5.00 MM 5969315
HSS Short spiral drill bit with MC shank DIN 345 N 118° steam discharge 4xD for steel <850 N/mm² and cast iron.
Applications
- Automotive steel mild steel (<120 HB <400 N/mm²)
- Structural steel inset steel (<200 HB <700 N/mm²)
- Carbon steel (<250 HB <850 N/mm²)
- Alloy steel (<250 HB <850 N/mm²)
- Cast Iron Lamellar (<150 HB >500 N/mm²)
- Cast Iron Lamellar (>150<300 HB >500<1000 N/mm²)
- Structural steel inset steel (<200 HB <700 N/mm²)
- Carbon steel (<250 HB <850 N/mm²)
- Alloy steel (<250 HB <850 N/mm²)
- Cast Iron Lamellar (<150 HB >500 N/mm²)
- Cast Iron Lamellar (>150<300 HB >500<1000 N/mm²)
Technical specifications
Attributes
| Drilling diameter | 5 mm |
|---|---|
| Total length | 133 mm |
| Length of cut | 52 mm |
| Taper shank | CM1 |
| Din standard | DIN 345 |
| Ratio of diameter to length of drill hole | 4xD |
| Body material | HSS |
| Sharpening | Standard |
| Tip angle | 118 ° |
| Internal cooling | No |
Show UNSPSC/ECL@SS
£ 18.62 excl. VAT
/ Each
£ 22.34 incl. VAT
In stock: Next day delivery
