Tapered roller bearing Timken 17244, Outer diameter: 62 mm | Inner diameter: 24.981 mm | Width: 14.288 mm

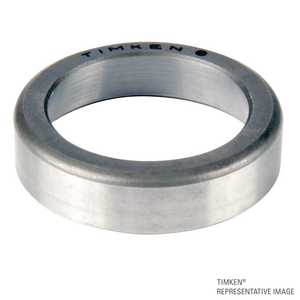

Outer ring of a tapered roller bearing
See technical informationReferences
Timken:17244
Rubix:100A0108
Manufacturer :100042370
EAN:0053893193618
Technical specifications
| Inner diameter | 24.981 mm |
|---|---|
| Outer diameter | 62 mm |
| Width | 14.288 mm |
Product details : TIMKEN 17244-20024 TAPERED ROLLER BEARING CUP
With the ability to accommodate both radial and axial loads, the high-performance Timken® tapered roller bearings are designed to deliver maximum durability in the most compact installation spaces.
Timken tapered roller bearing outer ring 17244 as a single cup part (TS A4138). Outside diameter 61.999 mm, width 14.288 mm and 0.20 kg.
Strengths
Both rings must be replaced at the same time to maximize reliability and service life.
Applications
Machine tool, automotive
Technical specifications
Attributes
| Packaged dimensions (D x W x H) | 71,374x71,374x26,924 mm |
|---|---|
| Package weight | 88,5 g |
| Inner diameter | 24.981 mm |
| Outer diameter | 62 mm |
| Width | 14.288 mm |
| Bearing Clearance | cn |
| Weight | 0.2 kg |
| Series | 17000 |
| Total bearing width | 16.002 mm |
| Basic static load, radial - C0r | 44100 N |
| Basic dynamic load, radial - Cr | 43200 N |
Show UNSPSC/ECL@SS
£ 26.29 excl. VAT
/ Each
£ 31.55 incl. VAT
- Delivery usually within ( 7 ) days
