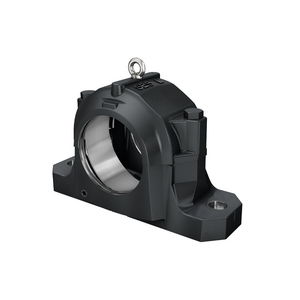

FAG SES205-L PLUMMER BLOCK HOUSING

Plummer block housing

References

FAG:SES205-L

Rubix:398A4239

Manufacturer :0860883600000

EAN:4064327776242

Inner diameter	74 mm
Fixation centre-to-centre distance	130 mm
Shaft Height	40 mm

Split plummer block housing for various bearing designs. The SNV series will be replaced by the new SES series in 2022.

Attributes

Inner diameter	74 mm
Fixation centre-to-centre distance	130 mm
Shaft Height	40 mm
Material	flake graphite cast iron
Type	split plummer block housing
Mounting typ	foot-mounted (2 extended slots for foot screws, standard design)
Height	74 mm
Length	165 mm
Sealing	double-lip seal (edh) or felt seal (efs) – seals ordered separately
Bearing Compatibility	compatible with bearing series e.g. 1205, 20205, 2205, 22205, 6205 (see manufacturer tpi for full list)
Number of holes	2
Bore Shape	suitable for bearings with cylindrical or tapered bore (adapter sleeve for tapered bore)
Outer diameter	52 mm
Width	67 mm
Housing shape	split plummer block (pillow block) housing

Show UNSPSC/ECL@SS

£ 28.97 ^{excl. VAT}

/ Each

£ 34.76 ^{incl. VAT}
