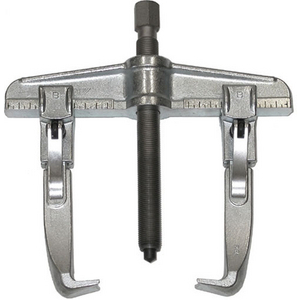

GEDORE 2 ARM MANUAL PULLER 1.06/1-E
Quick Release Puller
References
gedore:1.06/1-E
rubix:123A1941
manufacturer :1213830
ean:4036976106251
Technical specifications
| Number of clamps/claws | 2 |
|---|---|
| Inner capacity | 140 mm |
| Exterior capacity | 90 mm |
Product details : GEDORE 2 ARM MANUAL PULLER 1.06/1-E
Strengths
•Proven model for safe and fast removal of discs, wheels, ball bearings etc
Strong drop forged pattern
Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
Can be used as external and internal puller by repositioning the hooks
Exchangeable hooks for several clamping depths available as accessories
Quick release legs for fast, easy set-up and adjustment
Upgradeable with hydraulic spindle (see table
Strong drop forged pattern
Scale for uniform adjustment of the puller legs. Allows centred pulling, with optimised application of force, even when extremely high pulling forces are required
Can be used as external and internal puller by repositioning the hooks
Exchangeable hooks for several clamping depths available as accessories
Quick release legs for fast, easy set-up and adjustment
Upgradeable with hydraulic spindle (see table
Technical specifications
Attributes
| Number of clamps/claws | 2 |
|---|---|
| Inner capacity | 140 mm |
| Exterior capacity | 90 mm |
| Depth | 100 mm |
| Extraction force | 3 t |
| Diameter | 17 mm |
| Length | 137.5 mm |
| Type | Quick Release Puller |
Show UNSPSC/ECL@SS
£ 123.22 excl. VAT
/ Each
£ 147.86 incl. VAT
Usually arrives within 14 working days
