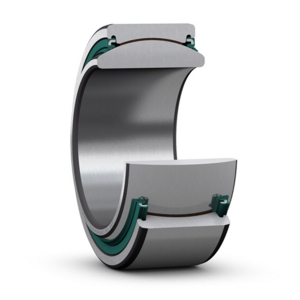

Spherical plain bearings SKF GE 20 TXG3E-2LS, Outer diameter: 35 mm | Width: 16 mm | Inner diameter: 20 mm

Radial Spherical Plain Bearing

See technical information

References

SKF:GE 20 TXG3E-2LS
Rubix:106A2153
EAN:7316575376246
brand logo

Technical specifications

Inner diameter20 mm
Outer diameter35 mm
Width16 mm
See all Specifications

Product details : SKF SPHERICAL PLAIN GE 20 TXG3E-2LS

Radial spherical plain bearings are designed to accommodate radial and combined radial and axial loads, and also misalignment. This specific design includes a steel/PTFE fabric sliding contact surface combination and the bearings are maintenance-free. Except for those with designation suffix TXGR, they have a double-lip contact seal (-2RS) or a triple-lip, heavy duty contact seal (-2LS) on both sides. Those with designation suffixes TXGR, TXG3E or TXG3A are made of stainless steel.

Strengths

- Designed for radial and combined radial and axial loads
- Long service life and maintenance-free
- Suitable for heavy, constant direction loads
- Low coefficient of friction
- High operating temperatures
- High sliding velocities and small operating clearances

Technical specifications

Attributes
Inner diameter20 mm
Outer diameter35 mm
Width16 mm
Sealingtwo rubber seals
Weight0.065 kg
Thickness12 mm
Basic dynamic load, radial - Cr83000 N
£ 129.61 excl. VAT
/ Each
£ 155.53 incl. VAT
  • Delivery usually within ( 3 ) days
