Tapered roller bearing Timken JHM720249-90K12, Outer diameter: 160 mm | Inner diameter: 100 mm | Width: 82.042 mm

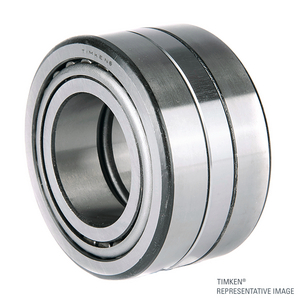

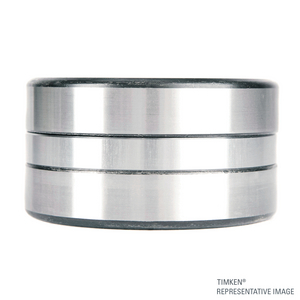

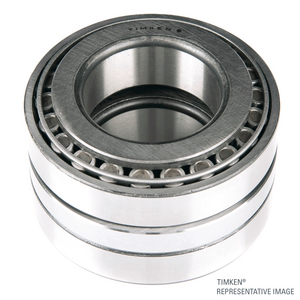

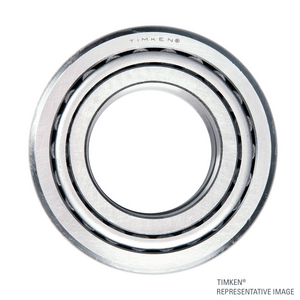

Tapered Roller Bearing 2TS Assembly
References
timken:JHM720249-90K12
rubix:397A5307
manufacturer :100114918
ean:0053893075921
Technical specifications
| Inner diameter | 100 mm |
|---|---|
| Outer diameter | 160 mm |
| Width | 82.042 mm |
Product details : TIMKEN JHM720249-90K12 TAPERED ROLLER BEARING
2TS assemblies are comprised of two single-row bearings with an inner and outer ring spacer. In some applications, a shoulder in the bearing housing replaces the outer ring spacer.
Strengths
Steel spacers are used to create Bench End Play (BEP) or Preload (BPL) in the bearing assembly. Available with or without spacers. Spacers preset during manufacture.
Applications
Gear reduction units; Industrial machines
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 82,042x160,02x160,02 mm |
|---|---|
| Logistic Weight | 6205 g |
| Packaged dimensions (D x W x H) | 107,95x171,45x171,45 mm |
| Package weight | 6204,7 g |
| Inner diameter | 100 mm |
| Outer diameter | 160 mm |
| Width | 82.042 mm |
| Bearing Clearance | cn |
Show UNSPSC/ECL@SS
£ 692.43 excl. VAT
/ Each
£ 830.92 incl. VAT
Usually arrives within 14 working days
