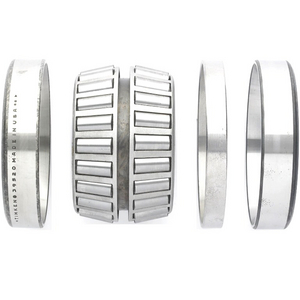

Tapered roller bearing Timken 399D-90270, Outer diameter: 109.982 mm | Inner diameter: 61.976 mm | Width: 55.626 mm
Tapered Roller Bearing Double Cone Assembly
References
timken:399D-90270
rubix:397A7634
ean:0053893030289
Technical specifications
| Inner diameter | 61.976 mm |
|---|---|
| Outer diameter | 109.982 mm |
| Width | 55.626 mm |
Product details : TIMKEN 399D-90270 TAPERED ROLLER BEARING DOUBLE CONE
TDI bearings have a one-piece double inner race and two single outer races and are typically supplied complete with an outer race spacer as a pre-set assembly. The bearing can be used at fixed positions on rotation shaft applications. For rotating housing application it can be used to float on the stationary shaft.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
TDI bearings are sometimes used on rotating shaft applications where a loose fit is required for ease of removal.
Strengths
Double cone and two single cups, with or without a cup spacer. Furnished as a matched assembly. Cups ground to fit
Applications
Gear reduction units; Calendar rolls; Industrial machinery
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 55,626x109,982x109,982 mm |
|---|---|
| Logistic Weight | 2114 g |
| Packaged dimensions (D x W x H) | 62,0776x123,9012x123,9012 mm |
| Inner diameter | 61.976 mm |
| Outer diameter | 109.982 mm |
| Width | 55.626 mm |
Show UNSPSC/ECL@SS
£ 1,243.43 excl. VAT
/ Each
£ 1,492.12 incl. VAT
Usually arrives within 14 working days
