Tapered roller bearing Timken 367-90179, Outer diameter: 89.916 mm | Inner diameter: 44.958 mm | Width: 50.038 mm
Tapered Roller Bearing Double Cup Assembly
References
timken:367-90179
rubix:397A8038
ean:0053893014739
Technical specifications
| Inner diameter | 44.958 mm |
|---|---|
| Outer diameter | 89.916 mm |
| Width | 50.038 mm |
Product details : TIMKEN 367-90179 TAPERED ROLLER BEARING DOUBLE CUP
The configuration of the TDO provides a wide effective bearing spread, making it ideal for applications in which overturning moments are a significant load component. TDO bearings can be used in fixed positions or allowed to float in the housing bore.
Strengths

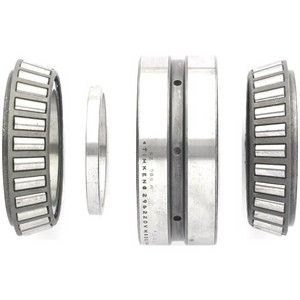

Double cup and two single cones, with or without a spacer. When spacers are used, bearing is furnished as a preset, matched assembly. Cup features groove and lubrication holes in the OD. Spacers available with or without lubricant grooves and holes.
Applications
Heavy-duty gear drives; Various industrial configurations
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 50,038x89,916x89,916 mm |
|---|---|
| Logistic Weight | 1341 g |
| Packaged dimensions (D x W x H) | 62,0776x93,6752x93,6752 mm |
| Inner diameter | 44.958 mm |
| Outer diameter | 89.916 mm |
| Width | 50.038 mm |
Show UNSPSC/ECL@SS
£ 254.97 excl. VAT
/ Each
£ 305.96 incl. VAT
Usually arrives within 14 working days
