Thrust ball bearing SKF 54207, Inner diameter: 30 mm | Outer diameter: 62 mm | Width: 37.7 mm

Thrust Ball Bearing

See technical information

References

SKF:54207
Rubix:102A7876
Manufacturer :39946
EAN:7316577007506
brand logo

Technical specifications

Inner diameter30 mm
Outer diameter62 mm
Width37.7 mm
See all Specifications

Product details : SKF THRUST BALL BEARING 54207

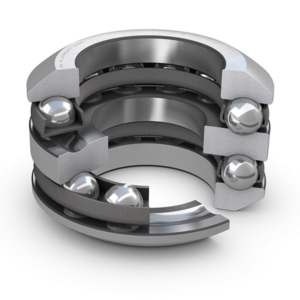

SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.

Technical specifications

Attributes
Logistics dimensions (L x W x H)37,7x62x62 mm
Logistic Weight413,3 g
Inner diameter30 mm
Outer diameter62 mm
Width37.7 mm
Type of bearingdouble effect
Series542
Materialbearing steel
Cagesteel
Weight0.53 kg
Thickness37.7 mm
Reference speed2800 rpm
Sealingopen (no seals)
Precisionp0 (normal / abec 1)
Basic dynamic load, axial - Ca35100 N
£ 157.23 excl. VAT
/ Each
£ 188.68 incl. VAT
  • Usually arrives within 14 working days
