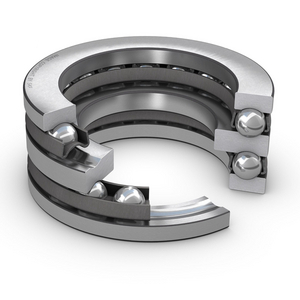

Thrust ball bearing SKF 52406, Inner diameter: 20 mm | Outer diameter: 70 mm | Width: 52 mm
Ball bearing Thrust Double thrust
References
skf:52406
rubix:102A7765
manufacturer :39862
ean:7316577035943
Technical specifications
| Inner diameter | 20 mm |
|---|---|
| Outer diameter | 70 mm |
| Width | 52 mm |
Product details : SKF THRUST BALL BEARING 52406
SKF thrust ball bearings are manufactured as single direction or double direction thrust ball bearings. They are designed to accommodate axial loads only and must not be subjected to any radial load.
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 52x70x70 mm |
|---|---|
| Logistic Weight | 949,4 g |
| Inner diameter | 20 mm |
| Outer diameter | 70 mm |
| Width | 52 mm |
| Series | 524 |
| Material | Bearing steel |
| Cage | Steel |
| Reference speed | 2200 rpm |
| Limit speed | 3200 rpm |
| Basic static load, axial - C0a | 122000 N |
| Basic dynamic load, axial - Ca | 70200 N |
Show UNSPSC/ECL@SS
£ 249.14 excl. VAT
/ Each
£ 298.97 incl. VAT
Usually arrives within 14 working days
