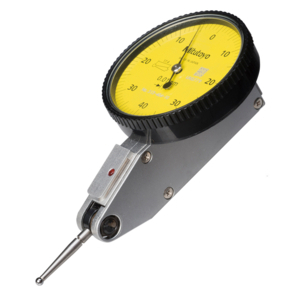

MITUTOYO 513-404-10T DIAL TEST INDICATOR HORIZONTAL TYPE
Dial Test Indicator, Horizontal Type
References
mitutoyo:513-404-10T
rubix:2583937
ean:4946368675701
Technical specifications
| Measuring range, minimum | 0 mm |
|---|---|
| Measuring range, maximum | 40 mm |
| Resolution | 0.01 mm |
Product details : MITUTOYO 513-404-10T DIAL TEST INDICATOR HORIZONTAL TYPE
This is a dial test indicator (lever type) which offers you the following benefits:
Drastically enhanced durability, sensitivity and visibility
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
Multi-layer coatings on the crystal
Drastically enhanced durability, sensitivity and visibility
Glare-free flat crystal face allows easy reading of graduations.
O-ring seal on the bezel has the effect of providing smooth rotation and prevents dust and oil from penetrating through to the dial face.
Multi-layer coatings on the crystal
Technical specifications
Attributes
| Measuring range, minimum | 0 mm |
|---|---|
| Measuring range, maximum | 40 mm |
| Resolution | 0.01 mm |
| Housing diameter | 40 mm |
| Measuring force | 0.3 N |
Show UNSPSC/ECL@SS
£ 115.23 excl. VAT
/ Each
£ 138.28 incl. VAT
Usually arrives within 14 working days
