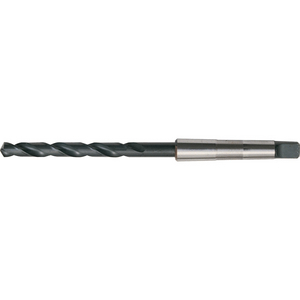

DORMER A13020.0 DRILL 20.00 MM 5969183
Metal drill bits A130
References
dormer:A13020.0
rubix:023511
ean:7320760023631
Technical specifications
| Drilling diameter | 20 mm |
|---|---|
| Total length | 238 mm |
| Length of cut | 140 mm |
Product details : DORMER A13020.0 DRILL 20.00 MM 5969183
HSS Short spiral drill bit with MC shank DIN 345 N 118° steam discharge 4xD for steel <850 N/mm² and cast iron.
Applications
- Automotive steel mild steel (<120 HB <400 N/mm²)
- Structural steel inset steel (<200 HB <700 N/mm²)
- Carbon steel (<250 HB <850 N/mm²)
- Alloy steel (<250 HB <850 N/mm²)
- Cast Iron Lamellar (<150 HB >500 N/mm²)
- Cast Iron Lamellar (>150<300 HB >500<1000 N/mm²)
- Structural steel inset steel (<200 HB <700 N/mm²)
- Carbon steel (<250 HB <850 N/mm²)
- Alloy steel (<250 HB <850 N/mm²)
- Cast Iron Lamellar (<150 HB >500 N/mm²)
- Cast Iron Lamellar (>150<300 HB >500<1000 N/mm²)
Technical specifications
Attributes
| Drilling diameter | 20 mm |
|---|---|
| Total length | 238 mm |
| Length of cut | 140 mm |
| Taper shank | mt2 |
| Din standard | din 345 |
| Coating | steam tempered |
| Direction of cutting | right |
| Ratio of diameter to length of drill hole | 4xd |
| Body material | hss |
| Sharpening | standard |
| Tip angle | 118 ° |
| Internal cooling | no |
Show UNSPSC/ECL@SS
£ 55.55 excl. VAT
/ Each
£ 66.66 incl. VAT
Usually arrives within 14 working days
