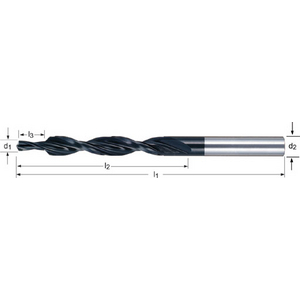

DORMER A400M5 A400 M5 ST STRAIGHT SUBLAND 90 DEG (X4D) DRILL 5970245
Metal drills A400
References
dormer:A400M5
rubix:293A7299
ean:7320760034330
Technical specifications
| Total length | 133 mm |
|---|---|
| Body material | HSS |
| Min. diameter | 5.3 mm |
Product details : DORMER A400M5 A400 M5 ST STRAIGHT SUBLAND 90 DEG (X4D) DRILL 5970245
HSS Multi-phase drill with cylindrical shaft voor continuous holes DIN 8374 N 90° steam tempered 4xD for steel <850 N/mm² and cast iron.
Applications
• Machining steel soft steel (<120 HB <400 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
• Construction steel carburised steel (<200 HB <700 N/mm²)
• Carbon steel (<250 HB <850 N/mm²)
• Alloyed steel (<250 HB <850 N/mm²)
• Cast Iron lamellar (<150 HB >500 N/mm ²)
• Cast iron lamellar (> 150<300 HB >500<1000 N/mm²)
Technical specifications
Attributes
| Total length | 133 mm |
|---|---|
| Body material | HSS |
| Min. diameter | 5.3 mm |
| Max diameter | 5.3 mm |
| Din standard | DIN 8374 |
| Length of cut | 87 mm |
| Tip angle | 118 ° |
Show UNSPSC/ECL@SS
£ 47.64 excl. VAT
/ Each
£ 57.17 incl. VAT
Usually arrives within 14 working days
