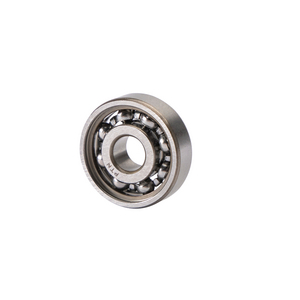

Miniature ball bearing PTN 685, Outer diameter: 11 mm | Width: 3 mm | Inner diameter: 5 mm
Miniature Deep Groove Ball Bearing
References
ptn:685
rubix:294A8874
manufacturer :898000
ean:3660338513435
Technical specifications

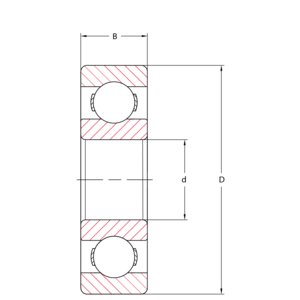

| Inner diameter | 5 mm |
|---|---|
| Outer diameter | 11 mm |
| Width | 3 mm |
Product details : PTN 685 DEEP GROOVE BALL BEARINGS
Through hardened round rolling elements with point surface contact
Non-separable races
Low friction torque
Low noise/vibration
Various design types: 2RS sealed, ZZ shield, open
Non-separable races
Low friction torque
Low noise/vibration
Various design types: 2RS sealed, ZZ shield, open
Strengths
Point surface contact provides high speed capabilities
Popular - simple design, not expensive
Versatile - wide range of applications
High radial load carrying ability
Tolerate some misalignment
Applications
Small to medium size/duty applications
Conveyor rollers
Light duty gearboxes
Light duty wheel bearings
General engineering applications
Technical specifications
Attributes
| Inner diameter | 5 mm |
|---|---|
| Outer diameter | 11 mm |
| Width | 3 mm |
| Sealing | Open |
| Bearing Clearance | CN |
| Series | Miniature |
| Material | Chrome Steel |
| Cage | Steel |
| Weight | 1.8 g |
| Limit speed | 45000 rpm |
| Total bearing width | 3 mm |
| Basic static load, radial - C0r | 280 N |
| Basic dynamic load, radial - Cr | 710 N |
Show UNSPSC/ECL@SS
£ 0.17 excl. VAT
/ Each
£ 0.20 incl. VAT
In stock: Next day delivery
