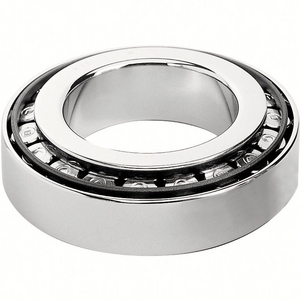

Tapered roller bearing Timken 32232, Outer diameter: 290 mm | Inner diameter: 160 mm | Width: 84 mm
Tapered Roller Bearing
References
timken:32232
rubix:261A7129
ean:0053893758046
Technical specifications
| Inner diameter | 160 mm |
|---|---|
| Outer diameter | 290 mm |
| Width | 84 mm |
Product details : TIMKEN 32232-90KA1 TAPERED ROLLER BEARING
Single-row tapered roller bearings are the most basic and widely used, consisting of a cone assembly and a cup. Timken patented the first in 1898 and today offers the world's widest variety in inch and metric sizes. This is the most basic and most widely used type of tapered roller bearing. It consists of two main separable parts: the inner race assembly and the outer race. It is typically mounted in opposing pairs on a shaft.
Strengths
Single cone and cup. One-piece pressed steel cage retains rollers on the cone and spaces them evenly. Pin type cages also available
Applications
Vehicle front wheels; Differential and pinion configurations; Conveyor rolls; Machine tool spindles; Trailer wheels
Technical specifications
Attributes
| Logistics dimensions (L x W x H) | 84x290x290 mm |
|---|---|
| Logistic Weight | 23133 g |
| Packaged dimensions (D x W x H) | 295,148x123,698x322,326 mm |
| Inner diameter | 160 mm |
| Outer diameter | 290 mm |
| Width | 84 mm |
| Series | 32232 |
| Cage | Steel |
| Total bearing width | 84 mm |
| Basic static load, radial - C0r | 366000 N |
| Basic dynamic load, radial - Cr | 44200 N |
Show UNSPSC/ECL@SS
£ 772.83 excl. VAT
/ Each
£ 927.40 incl. VAT
Usually arrives within 14 working days
