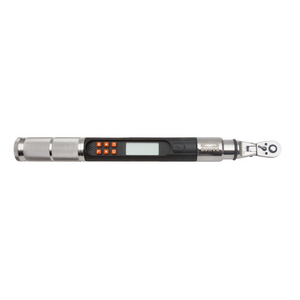

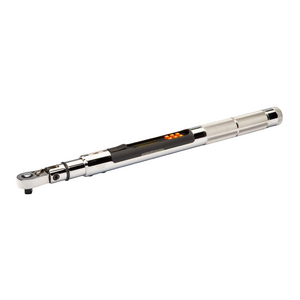

BAHCO TAWM12340 ELECTRICAL TORQ-ANGLE-MEM 17-340NM


Angle Wrench

References
bahco:TAWM12340
rubix:214A4731
ean:7314150274925
brand logo
brand logo
Technical specifications
Square drive adapter1/2 ''
See all Specifications

Product details : BAHCO TAWM12340 ELECTRICAL TORQ-ANGLE-MEM 17-340NM


Torque units in N·m, kg.cm, dN·m, ft.lb, lb.in and angle units in degrees
Torque range covers from 7 to 800 N·m and from 5.1 to 590 ft.lb
It can be used CW and ACW at temperatures between 5 ºC and 42 ºC
Memory capacity of 1,500 readings and up to 50 presets
Plug and play USB data download to Excel format
Torque, angle, torque and angle, torque then angle, preset and job modes
Counter
Data and set value retention during battery exchange
Programmable automatic shut-off time
Programmable Recalibration warning
More advanced configurations and settings available in the user manual
Accurate to ±2% CW and 3% ACW between 20% and 100% of max torque
Visual (dual LEDs + backlit LCD display), audio and vibration signal
40-tooth fixed ratchet heads from 3/8" to ¾" square drives
All in a metal body and bezel for higher strength and duration
Metal handle with reverse threaded end cap to enclose AA alkaline batteries (included)
Supplied in sturdy blow mould case
Supplied with a factory declaration of conformity and CE marking
Made in USA

Torque Range : 17-340NM
Drive size: 3/8 inch
Weight : 1.97kg

Technical specifications


Attributes
Logistic Weight2587 g
Square drive adapter1/2 ''
Length670 mm
Tightening torque, minimum17 N.m
Tightening torque, maximum340 N.m
Diameter (inch)1/2 ''
Show UNSPSC/ECL@SS
£ 1,308.07 excl. VAT
/ Each
£ 1,569.68 incl. VAT
  • Usually arrives within 14 working days
