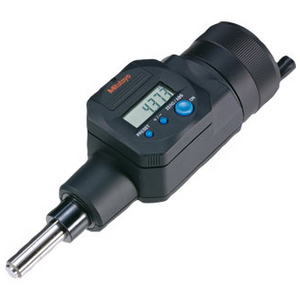

MITUTOYO 164-163 DIGITAL MICROMETER HEAD
Digimatic limit micrometer, Series 164
References
mitutoyo:164-163
rubix:80050471
Technical specifications
| Measuring range, minimum | 0 mm |
|---|---|
| Measuring range, maximum | 50 mm |
| Spindle diameter | 8 mm |
Product details : MITUTOYO 164-163 DIGITAL MICROMETER HEAD
For mounting on devices, machines and measuring devices.
Strengths
Safe and error-free measurement. 164 Function Series: ZERO/ABS change Auto shutdown (20 min. without use) 2 Preset data output Reversal of the metering direction
Applications
Series 164 - Digimatic limit micrometer; Rotary display (330°) and function keys. Limit micrometer with non-rotating measuring spindle. Technical features: Measuring spindle: 1 barrel circumference equal to 0.5 mm; Display: LCD character height 7.5 mm; Power supply: 2bBatteries SR-44; Resolution: 0.001 mm; Battery life: About 20 months
Technical specifications
Attributes
| Measuring range, minimum | 0 mm |
|---|---|
| Measuring range, maximum | 50 mm |
| Spindle diameter | 8 mm |
| Rod diameter | 8 mm |
| Rod length | 79 mm |
| Total length | 220 mm |
| Graduation | 0.001 mm |
| Drum diameter | 49 mm |
Show UNSPSC/ECL@SS
£ 813.03 excl. VAT
/ Each
£ 975.64 incl. VAT
Usually arrives within 14 working days
