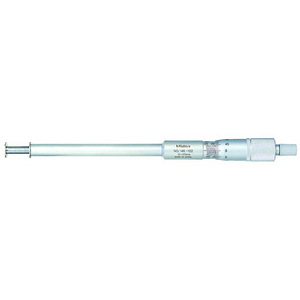

MITUTOYO 146-231 GROOVE MICROMETER NON-ROTATING SPINDLE

Groove Micrometer

See technical information

References

Mitutoyo:146-231
Rubix:257A0099
EAN:4946368387758
brand logo

Technical specifications

Measuring range, minimum1.397 mm
Measuring range, maximum26.67 mm
See all Specifications

Product details : MITUTOYO 146-231 GROOVE MICROMETER NON-ROTATING SPINDLE

For measuring the width, depth and relative position of grooves inside and outside bores.

Applications

Série 146 Mechanical micrometers for grooves Technical specifications: Accuracy: ±10 'm Reading: 0.01 Graduations: Drum and sleeve graduated, matte chrome-plated, ø18 mm Parallelism: 10 'm Measuring surface: hard metal Measuring spindle: 1 drum revolution equals 0.5 mm - Ratchet can be used in both directions Supplied: In case, key

Technical specifications

Attributes
Measuring range, minimum1.397 mm
Measuring range, maximum26.67 mm
Spindle diameter6.35 mm
Graduation0.635 mm
Resolution0.0254
£ 395.09 excl. VAT
/ Each
£ 474.11 incl. VAT
  • Usually arrives within 14 working days
