GEDORE 3278395 TF-K300 TORCOFIX K 1/2 60-300 NM


TF-K Torcofix Torque Wrench

References
gedore:TF-K300
rubix:386A5599
manufacturer :3278395
ean:4010886966693
brand logo
brand logo
Technical specifications
Tightening torque, minimum60 N.m
Tightening torque, maximum300 N.m
Square drive adapter1/2 ''
See all Specifications

Product details : GEDORE 3278395 TF-K300 TORCOFIX K 1/2 60-300 NM


• Robust & lightweight construction with bi-directional controlled tightening
• Measurement accuracy +/-3% to DIN EN ISO 6789-2:2017 Type II
• Measurement range from 1-850 N·m / 0.75 lbf·ft - 630 lbf·ft
• Includes traceable Gedore calibration certificate
• Ratchet head with ball lock square drive
• Large, clear to read scale Nm/lbf-ft
• Suitable for left & right handed operators
• Ergonomic, comfy handle with anti-roll preventing the tool from rolling away when put down

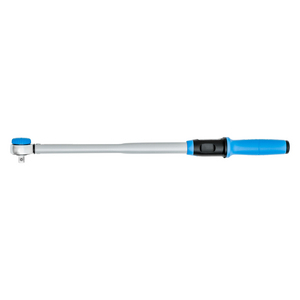

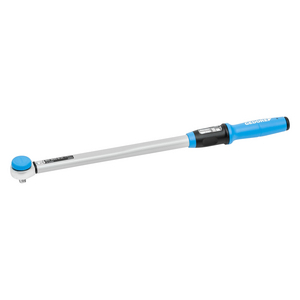

TORCOFIX TF-K 60-300Nm 1/2" torque wrench GEDORE
TORCOFIX-K torque wrench, 1/4"-1/2" with mushroom-head reversing square Design: Double scale for glare-free reading of NÂ-m as well as lbfÂ-ft under a viewing window, with vernier. Sturdy lacquered tubular steel construction with galvanized ratchet and ergonomic plastic handle with calibration aid. Thanks to the integrated ratchet function, controlled right/left clamping is guaranteed. The articulated mechanism with sliding roller guarantees an audible and tactile release signal. Easy, comfortable scale adjustment by turning the handle and locking with the insertion knob, extremely high precision thanks to the micrometric scale ring. Classified to DIN EN ISO 6789-2:2017 Type II Class A, calibrated for a maximum permissible deviation of ±3% and therefore more accurate than the ±4% required by the standard. Supplied with test certificate. Application: For controlled tightening of screws in the corresponding torque range, for all areas of industrial manufacturing. With mushroom-head insert. Supplied in plastic box. Supplied in sturdy plastic box with DIN EN ISO 6789 test certificate and bilingual instructions. Application: For controlled tightening of screws in the appropriate torque range, for all areas of industrial manufacturing.

Strengths

Easy to use torque wrench delivering precise torque safely

Technical specifications


Attributes
Tightening torque, minimum60 N.m
Tightening torque, maximum300 N.m
Square drive adapter1/2 ''
Length585 mm
Weight1.37 kg
Number of elements1
StandardDIN EN ISO 6789-2:2017
TypeTorque Wrench
Precision+/- 3%
Show UNSPSC/ECL@SS
£ 253.58 excl. VAT
/ Each
£ 304.30 incl. VAT
  • Usually arrives within 14 working days
