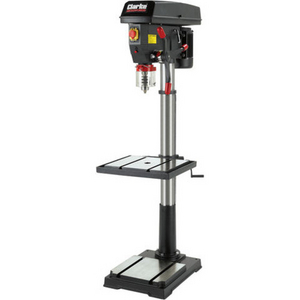

CLARKE 6505592 CDP502F 12 SPEED PEDISTAL DRILL 1100W 230V


CDP502F Floor Mounted Drill Press 12 Speed 1100W 240V

References
clarke power products:6505592
rubix:80246459
Technical specifications
Voltage230 V
Chuck capacity20 mm
SpindleB22
See all Specifications

Product details : CLARKE 6505592 CDP502F 12 SPEED PEDISTAL DRILL 1100W 230V


This floor mounted drill press is specially designed for heavy duty engineering and workshop use where there is a requirement for precision drilling. Powered by a 1100W induction motor. It has 12 speed settings and a 5-20mm chuck capacity making it suitable for a wide variety of jobs including drilling different material types.
Includes work light (bulb included)
Chuck Capacity5-20mm (spindle taper B22) / Includes drilling depth gauge
230V 1100W induction motor / 12 Speeds from 150 to 2450rpm
400x344mm table with a +/- 45 degree tilting angle
Table can be swivelled a full 360 degree allowing the base to be used as a work support
Chuck to table: 41-580mm, Chuck to column: 253mm, Chuck to base: 1085mm
Dimensions (LxWxH): 855mm x 471mm x 1725mm / Weight:114kg

Technical specifications


Attributes
Voltage230 V
Chuck capacity20 mm
SpindleB22
Speed2450 rpm
Power1100 W
Weight114 kg
Dimension (HxLxW)1725x855x471 mm
Height1725 mm
Length855 mm
Width471 mm
Show UNSPSC/ECL@SS
£ 1,011.47 excl. VAT
/ Each
£ 1,213.76 incl. VAT
  • Delivery within 10-15 business days
