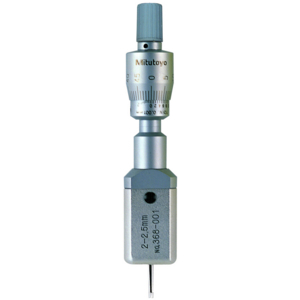

MITUTOYO 368-164 3-POINT INTERNAL MICROMETER HOLTEST
3-key HOLTEST interior micrometers without ring and without blind hole extension - Series 368
References
mitutoyo:368-164
rubix:80347945
Technical specifications
| Measuring range, minimum | 12 mm |
|---|---|
| Measuring range, maximum | 16 mm |
| Standard measurement depth | 130 mm |
Product details : MITUTOYO 368-164 3-POINT INTERNAL MICROMETER HOLTEST

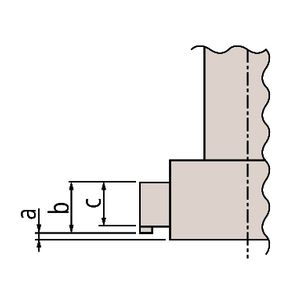

Reading up to 12 mm: 0.001 mm, above 12 mm: 0.005 mm. Measuring surfaces 2-6 mm: Carbide 6-12 mm: Tungsten carbide coated with tin 12-300 mm: Tempered steel coated with tin. Cone: Tungsten carbide. Supplied with case, key. Analogue. Metric unit of measurement. Depth without extension: 80 mm. Dimensions: L1 82 mm; L2: 126 - 130 mm; a: 0.3 mm; b: 5.6 mm; c: 3.5 mm.
Technical specifications
Attributes
| Measuring range, minimum | 12 mm |
|---|---|
| Measuring range, maximum | 16 mm |
| Standard measurement depth | 130 mm |
| Depth of measurement with extension | 82 mm |
| Dim. A | 0,3 mm |
| Box | Yes |
Show UNSPSC/ECL@SS
£ 363.99 excl. VAT
/ Each
£ 436.79 incl. VAT
Usually arrives within 14 working days
