MITUTOYO 368-174 3-POINT INTERNAL MICROMETER HOLTEST
3-key HOLTEST interior micrometers without ring and without blind hole extension - Series 368
References
mitutoyo:368-174
rubix:80537551
Technical specifications
| Measuring range, minimum | 100 mm |
|---|---|
| Measuring range, maximum | 125 mm |
| Standard measurement depth | 252 mm |
Product details : MITUTOYO 368-174 3-POINT INTERNAL MICROMETER HOLTEST

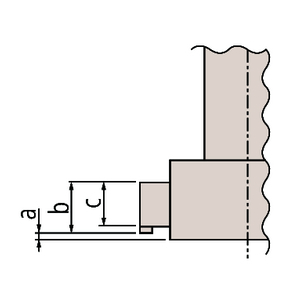

Reading up to 12 mm: 0.001 mm, above 12 mm: 0.005 mm. Measuring surfaces 2-6 mm: Carbide 6-12 mm: Tungsten carbide coated with tin 12-300 mm: Tempered steel coated with tin. Cone: Tungsten carbide. Measuring spindle: 0.5 mm. Supplied with case, key. Analogue. Drum circumference: 0.5 mm. Metric unit of measurement. Depth without extension: 158 mm Dimensions: L1 161 mm; L2: 227 - 252 mm; a: 12.4 mm; b: 21 mm; c: 13.8 mm.
Technical specifications
Attributes
| Measuring range, minimum | 100 mm |
|---|---|
| Measuring range, maximum | 125 mm |
| Standard measurement depth | 252 mm |
| Depth of measurement with extension | 161 mm |
| Dim. A | 12,4 mm |
| Box | Yes |
Show UNSPSC/ECL@SS
£ 798.40 excl. VAT
/ Each
£ 958.08 incl. VAT
Usually arrives within 14 working days
