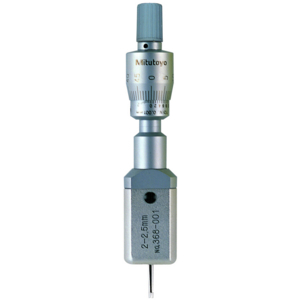

MITUTOYO 368-171 3-POINT INTERNAL MICROMETER HOLTEST
3-key HOLTEST interior micrometers without ring and without blind hole extension - Series 368
References
mitutoyo:368-171
rubix:80186004
Technical specifications
| Measuring range, minimum | 62 mm |
|---|---|
| Measuring range, maximum | 75 mm |
| Standard measurement depth | 163 mm |
Product details : MITUTOYO 368-171 3-POINT INTERNAL MICROMETER HOLTEST

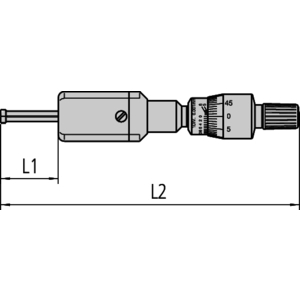

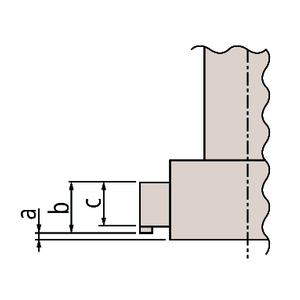

Reading up to 12 mm: 0.001 mm, above 12 mm: 0.005 mm. Measuring surfaces 2-6 mm: Carbide 6-12 mm: Tungsten carbide coated with tin 12-300 mm: Tempered steel coated with tin. Cone: Tungsten carbide. Measuring spindle: 0.5 mm. Supplied with case, key. Analogue. Metric unit of measurement. Depth without extension: 105 mm. Dimensions: L1 105 mm; L2: 150 - 163 mm; a: 0.3 mm; b: 17 mm; c: 14 mm.
Technical specifications
Attributes
| Measuring range, minimum | 62 mm |
|---|---|
| Measuring range, maximum | 75 mm |
| Standard measurement depth | 163 mm |
| Depth of measurement with extension | 105 mm |
| Dim. A | 0,3 mm |
| Box | Yes |
Show UNSPSC/ECL@SS
£ 526.78 excl. VAT
/ Each
£ 632.14 incl. VAT
Usually arrives within 14 working days
