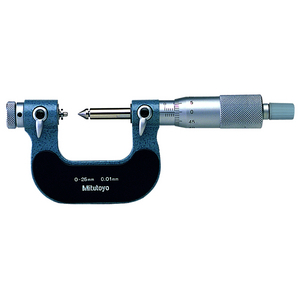

MITUTOYO 126-126 SCREW THREAD MICROMETER
External micrometer for measuring threads with interchangeable keys-126 series
References
mitutoyo:126-126
rubix:80055616
ean:4946368015699
Technical specifications
| Measuring range, minimum | 25 mm |
|---|---|
| Measuring range, maximum | 50 mm |
Product details : MITUTOYO 126-126 SCREW THREAD MICROMETER

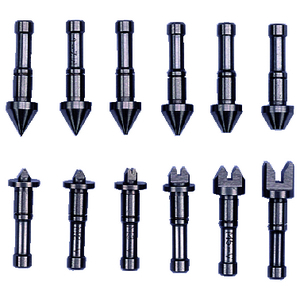

Precision: ± 4 µm. Weight: 290 g. Measuring spindle: 1 drum turn equal to 0.5 mm with locking device. Optional keys. Analogue. Metric unit of measurement. Dimensions: L: 6. 8 mm (A). 32 mm
Applications
To measure the diameter, very on the side of threads.
Technical specifications
Attributes
| Measuring range, minimum | 25 mm |
|---|---|
| Measuring range, maximum | 50 mm |
Show UNSPSC/ECL@SS
£ 309.12 excl. VAT
/ Each
£ 370.94 incl. VAT
Usually arrives within 14 working days
