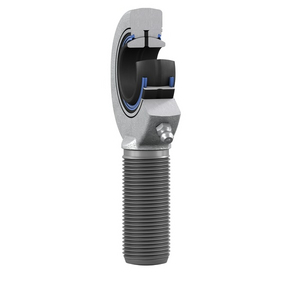

SKF ROD END BEARING SA 40 ES-2RS
SKF Plain bearing Rod end SA Series
References
skf:SA 40 ES-2RS
rubix:103A2912
manufacturer :22116
ean:7316577002709
Technical specifications
| Inner diameter | 40 mm |
|---|---|
| Head diameter | 94 mm |
| Bearing Clearance | CN |
Product details : SKF ROD END BEARING SA 40 ES-2RS
These SKF rod ends contain a spherical plain bearing with a steel/steel sliding contact surface combination and a double-lip contact seal on both sides. The bearing requires maintenance and can be relubricated via a grease fitting in the housing and via the shaft. The male thread is available with a left- (prefix SAL) or a right-hand thread. Some sizes have different fitting dimensions (SA(L)A series).
Strengths
- Long service life
- Maintenance-free
- Suitable for heavy, constant direction loads
- Low coefficient of friction
- Simple and ready-to-mount
- Maintenance-free
- Suitable for heavy, constant direction loads
- Low coefficient of friction
- Simple and ready-to-mount
Technical specifications
Attributes
| Logistic Weight | 1937 g |
|---|---|
| Inner diameter | 40 mm |
| Head diameter | 94 mm |
| Bearing Clearance | CN |
| Series | SA |
| Material | Bearing steel |
| Female thread | M 42x3 |
| Stat. Load rating | 140 N |
| Dyn. Load rating | 100 N |
| Length | 194 mm |
| Outer diameter | 94 mm |
Show UNSPSC/ECL@SS
£ 189.75 excl. VAT
/ Each
£ 227.70 incl. VAT
Usually arrives within 14 working days
