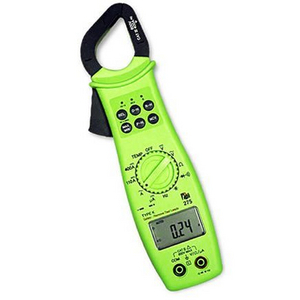

TPI-275 TRUE RMS AC/DC AMPS UP TO 400 DIGITAL CLAMP METER
Clamp-On Meter
References
tpi:275
rubix:2577607
Product details : TPI-275 TRUE RMS AC/DC AMPS UP TO 400 DIGITAL CLAMP METER
The slim design 275 is a hand-held, autoranging clamp-on DMM. Extra large numerals, min/max, capacitance, DC microamps and duty cycle are just a few of the features of the 275. An affordable choice, the 275 offers measurements in all basic electrical functions with additional advanced features like non-contact voltage.
- True RMS
- 11,000 count display
- Up to 400 amps AC/DC
- Frequency, Min/Max/Record, Data Hold and Peak Hold
- Hi Voltage Indicator(>30V AC/DC)
- Low Ohm Range (110V)
- Temperature measurement
Clamp-On Tester with True RMS Digital Multimeter & 11,000 Count Display. The new TPI 275 with slim jaw and body is ideal for cramped work areas and crowded electrical panels.
Strengths
- Measure DC amperage of motor drive units
- Measure flame safety control current
- Test run and start capacitors and motors
- Measure motor run current and capture peak motor start up amperage
- Measure heat anticipator current
- Determine thermocouple voltage
- Test line and control voltages
- Measure heating element resistance
- Measure air temperature in ducts
- Test for the presence of voltage in circuits without contacting the circuit
- Measure temperature differential using relative mode
Technical specifications
Attributes
No attributes to display for this product
£ 133.57 excl. VAT
/ Each
£ 160.28 incl. VAT
Usually arrives within 14 working days
